横切丝刀与竖切丝刀的间隙设置为多大合适
发布时间:2018-04-26 10:51:40 发布人:admin

  1、用手摸调直后的丝手感有小弯,这说明调直模角度大,则把调整用度变小,如果出现大弯,要把调整模的角度增大,如果还不直,就要检查叼丝轮子高速转子,与横切刀的孔,是不是水平位置,这三点必须一线,水平左右不能偏离。

  1, with hand touch straightening silk hand feel a small bend, this indicates that the angle of the straightening die is big, then the adjustment is smaller. If there is a big bend, the angle of the adjustment model should be enlarged. If it is not straight, it is necessary to check the high speed rotor of the silk wheel, the hole of the cutter and the horizontal position, and the three points must be on the front line and the level is about the horizontal. It can deviate.

  2、开机前必须熟读使用说明书,并按规定加润滑油,检查各紧固件是否拧紧,叼丝轮的旋转方向是否符合规定的方向,发现问题请及时处理。

  2, before starting the machine, you must read the instruction manual well, add lubricating oil according to the regulations, check whether the fasteners are tightened or not, whether the rotation direction of the silk wheel conforms to the prescribed direction, and finds the problem in time.

  3、如果出现断丝头上有毛刺,可能是横竖断丝刀间隙太大,就要调整横竖刀间隙,如果还不行,在检查横竖刀是否磨损严重,如果磨损严重,就把竖断丝刀和横断丝刀取下,横断丝刀在合金砂轮上磨平,竖断丝刀在一般砂轮上磨平直到锋利为止。

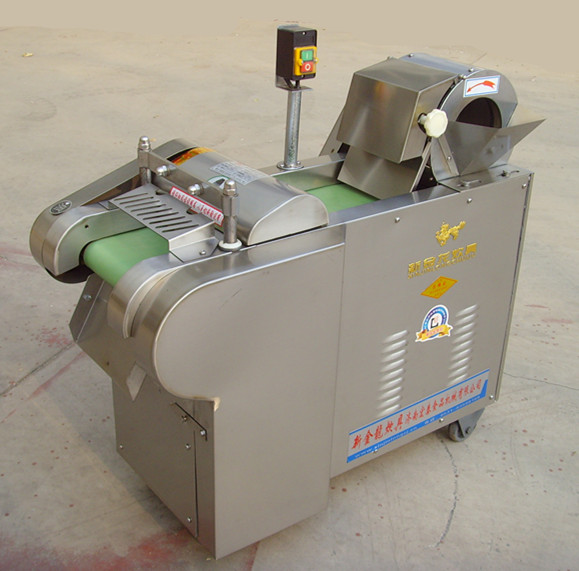

切丁切块机

  3. If there is a burr on the broken wire head, it may be that the gap between the vertical cutting tool is too large and the clearance of the vertical knife should be adjusted. If it is not good, the vertical knife and the cross cut knife are taken off if the wear is serious, and the cross cutting knife is smooth on the alloy sand wheel, and the vertical cutter is on the general grinding wheel. Polished until sharp.

  4、检查横断丝刀上的螺母是否松动,横切丝刀与竖切丝刀的间隙调制越小越好,但不要过紧,一般能上下滑动为宜,上冲头与竖切丝刀的上下间隙一般2-3mm,上冲头与竖切丝刀的压量一般为4-5mm。

  4. Check the loosening of the nut on the crosscut knife, the smaller the gap modulation of the cross cutting tool and the vertical cutting tool, the better the better, but not too tight, it is suitable to slide up and down, the upper and lower clearance of the top punch and the vertical cutter are generally 2 3mm, and the pressure of the upper punch and the vertical cutter is generally 4 5mm.

  5、如果出现连续切断,可能是拉簧过送,调整拉簧的紧度,也可能是叼丝轮的压簧送,推不动跑道则需要调整叼丝轮压簧。

  5, if there is a continuous cut off, it may be a pull spring, adjust the tightness of the spring, and may be the reed of the silk wheel.

  6.如果出现断丝,就要检查叼丝轮上的压簧是否压的不紧,或者是叼丝轮上的槽磨损严重,调整叼丝轮压槽后还是不行,就要改变叼丝轮上的槽。

  6. if there is a broken wire, it is necessary to check whether the pressure spring on the silk wheel is not tight, or the groove on the silk wheel is badly worn, and the groove on the silk wheel should be changed after adjusting the groove of the silk wheel.
